Universal Control Unit

The Universal Control Interface (UCI) module is designed specifically for the control and monitoring of industrial cathodic protection systems. The UCI provides a common, versatile, and networkable control interface for a wide variety of Cathodic Protection power supply types (e.g. SCR, Switch Mode, Solar, etc.) and for any DC output range

Universal Control Unit UCI

Engineered by SOGEC, the Universal Control Interface (UCI) is a highly versatile, networkable automation module designed specifically for industrial Cathodic Protection systems. Compatible with all power supply types—including SCR, Switch Mode, and Solar platforms—the UCI delivers absolute measurement precision and zero-failure data continuity in harsh field environments.

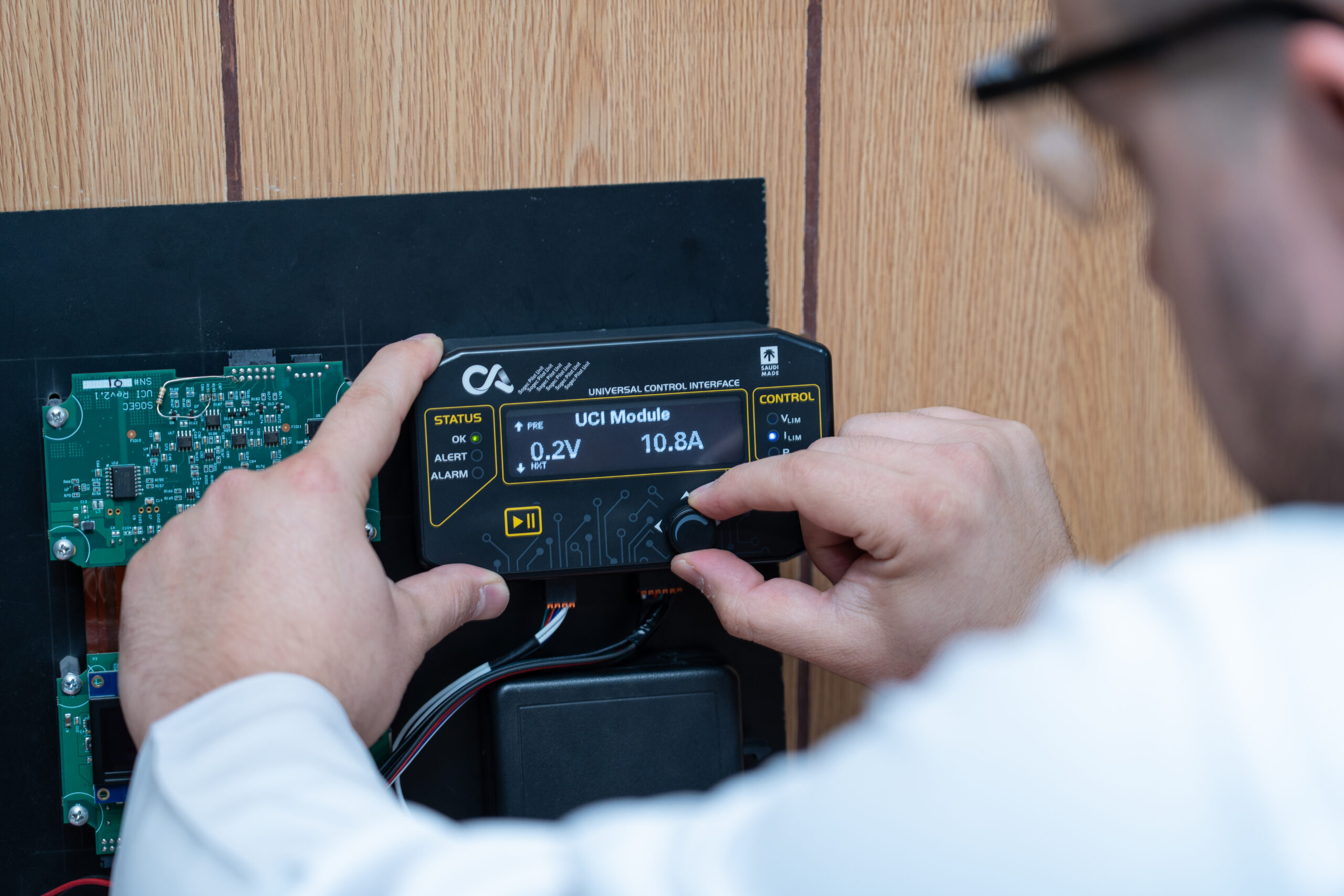

Intuitive HMI

Easy-to-navigate graphical display enabling Operators to view & adjust all operating levels, set control mode, schedule data polling, view & update diagnostics and initiate special functions.

Stand-alone or Networked Configuration

UCI can be configured for stand-alone operation or in a multi-UCI network..

.
.

64 Simultaneous Reference/Parameter Measurement Capacity

UCI can manage up to 16 connected AIM modules, each measuring 4 parameters, to provide simultaneous (not multiplexed) data acquisition of 64 reference potentials or other parameters.

User Selectable VIP Control Mode

UCI operates in either Constant Current, Constant Voltage, or Potential Control mode at user-selected operating limits.
.
.

True Simultaneous Data Acquisition & On

Board Storage, UCI acquires multiple parameter data simultaneously on every poll (i.e. not multiplexed) with non-volatile memory capable of storing 10+ years of daily acquired operating data.
.

Multiple Electronic Interruption & Run/ Stop Facilities

Interrupt DC power output via toggle on HMI, built-in interrupter function, conventional / GPS interruption, and/or via the RS4985 / Ethernet network.
